Stitch Classification - Various Types Stitches Used in Garment Making

 In textiles, a stitch is a series of repetitive single turn or loop of threads or yarns through interloping, intra-looping, or interlacing. It is the fundamental element for sewing, knitting, embroidery, crochet, and needle lace-making whether by hand or machine. It can be formed by any of the following three methods:

• Interloping: It is formed by passing the loop of one thread through the loop of another sewing thread. E.g. Stitch type 401
• Intra-looping: It is formed by passing the loop of one thread through the loop of the same thread. E.g. Stitch type 101
• Interlacing: It is formed when one thread passes over another thread. E.g. Stitch type 301

Based on this, there are more than 70 types of stitches out of which around 18-20 types are used most frequently and for ease of identification all the types have been grouped to 6 classes based on the number of the needle, direction of sewing, the form or shape of the stitch, purpose of the stitch, etc. The 6 classes of stitch are mentioned as:

1. Class 100: Single Thread Chain stitch

The stitches formed here are from one or more needle by the method of intralooping. Thus, one or more loops of the needle thread are passed through the fabric and secured by looping with the next loop of the same thread after they are passed through the fabric. This type of stitch is very insecure as each loop is dependent on the next loop and a single thread breakage can pull apart the entire stitch.

These look similar to that of lock stitch on the face side with the loops on the back. The added advantage of these loops is that it makes the stitch elastic and thus can be used where the fabric needs a little stretch such as in back neck tape in t-shirts. Also, with easy removal of stitch, it is used in basting operations in tailor-made garments. This kind of stitch is often not preferred for seaming operations but is widely used in multi-needle machines, as temporary stitch and blind stitch.

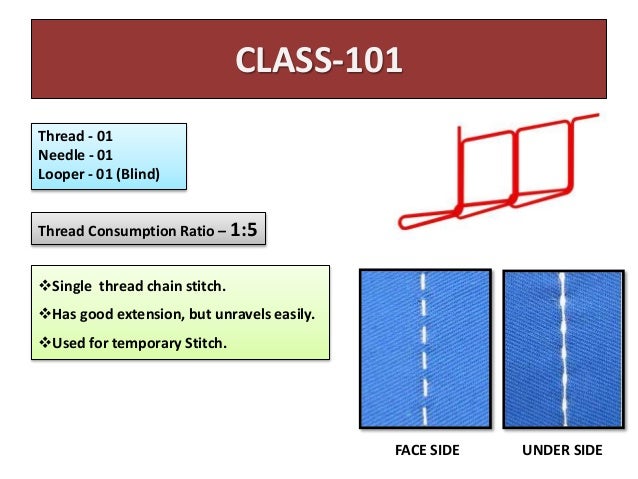

Stitch type 101 or single needle chain stitch is the most common of them along with a 103 single thread blind stitch. The front and back of all the other types are given below



2. Class 200: Hand Stitch

These types of stitches are hand stitches that are used for decorative purposes. These are formed by a single sewing thread and the stitch is held by a single line of thread passing from one side to the other side of the fabric. This is mostly used for casual fitting with a simple sewing needle and thread as domestic needs but is also found as topstitch in high-priced garment due to its perfect finish. This can also be done on automatic machines called pick stitch sewing machines but are very slow and are rarely in use. The front and back of all the other types are given below.









3. Class 300: Lock Stitch

Lock stitch is the most common form of stitch in ready-made garments and is formed when the thread or threads are introduced from one side of the material to interlace with thread or threads introduced from the other side of the material. The top thread is called the needle thread and the bottom thread is called the bobbin thread. The interlacing of the threads makes the stitch secure and difficult to unravel makes it the most appropriate for a wide range of seams. Also, lockstitch has adequate strength for most purposes with a correct combination of thread and fabric.


The main disadvantages of lock stitch are

• Limited bobbin thread length makes it necessary for changing of the bobbin from when it gets finished.
• Multi-needle stitching with many closed space needles is not possible due to limited space for bobbin. So, at most two needles can be used in a lock stitch machine.
• The interlacing of thread limits the elasticity of the stitch and is unsuitable for edge neatening.
• It is not suitable for knitted fabric due to lack in elasticity.

Stitch type 301 is the most common type of stitch with uses in joining garment components, top stitching, etc. Also, buttonholing, button attaching, blind stitching falls in this class of stitches. The front and back of all the other types are given below.







4.Class 400: Multi-thread Chain Stitch

It is a multi-thread chain stitch type where loops formed in one set of sewing thread is passed through the fabric and are held by interloping and interlacing with loops formed by another set of threads called the looper threads. It looks like that of a lock stitch on the front side of the fabric but has a double chain effect created by the looper thread on the backside. Compares to lock stitch, a 2-thread chain stitch is much stronger and since no threads are interlocking with each other within the fabric there are lesser chances of having a puckering in the seam. Another advantage of this is that both the needle and looper thread runs from large cones on the top of the machine unlike that of the limited sewing thread inside bobbin. Also, it runs much faster than that of a lock stitch machine at 8000rpm.
Stitch type 401 is the most common of them all and is used in sewing jeans and trousers and is also used with over lock as a safety stitch. Stitch type 406,407 are used for joining lace, braid, elastics with the garment. The front and back of all the other types are given below.



5. Class 500: Over-edge Chain Stitch

It is mostly known as overlock stitch and is formed by one or more sets of sewing threads with at least one set of thread going around the raw fabric edge. All the stitch in this class has high elasticity which does not unravel on thread breakage. Also, the machines are equipped with a trimming knife to make the edge neat before sewing. The width of the stitch may vary from 3-5mm. Overlock stitches are classified according to the number of threads used for sewing such as 1,2,3,4 or 5 thread stitches. Each of these stitches is different in appearance and their respective benefits are:

• 1 thread overlock stitches are used for butt-seaming.
• 2 -3 thread overlock stitches are used as edge neating seam in woven and knitted garments.
• 4 thread overlock stitch also known as mock safety stitch provide extra strength while retaining flexibility.
• 5 thread stitch has two needle threads known as safety stitch which forms stronger seam.

Also, the speed of the overlock machine is similar to that of chain stitch machines and can go up to 8000rpm. Stitch Class 504(3 thread overlock) is the most common of all and is used for securing the raw edges of the fabric and for heavy fabric such as denim 514 (4-thread mock safety) is used. This is because 3-thread stitches are prone to seam grinning when the seam is pulled at a right angle to the seam. The front and back of all the other types are given below.



6. Class 600: Covering Chain Stitch

It is mostly known as Flat lock stitch and is formed by three sets of sewing thread namely, needle, looper, and spreader. Apart from the needle threads, the other two sets cover the top and bottom part of the stitch. It is the most complicated of all types with up to a total of nine threads including four needles and rest looper and spreader thread.

These are mostly used for attaching tape, lace, braid, elastic to the knit fabric, etc. It can also be used as a decorative stitch. Stitch type 602 is mostly used for the above functions and hemming in t-shirts. The front and back of the rest are given below.







Stitch classification may not be of so much importance when it comes to knowledge but a clear understanding of it is very much important when there is a requirement of identification of stitching to be done in the garment especially in the tech pack. The stitch type then acts as a code at letting the reader know what stitch has to be done over that part of the garment.







Collected by: Md. Tarikul Islam Jony
Mail:jonytex073@gmail.com
+8801912885383





Lean Manufacturing tools series 19 (Six Sigma)

 Six sigma is the strategy concerned with reducing the amount of variation concerned with completing a process on a repeated basis, so that the overall product can function at a level that is acceptable to the customer. It is also the practice of constant improvement by identifying defects that can be brought under control in order to improve the functionality of the end product. While it may seem like six sigma is a highly technical skill, in reality it is used in many different sectors. It is not uncommon to see six sigma practices implemented into marketing, sales, and customer support organizations as well.

 Initially created and implemented by Motorola, most companies have implemented some sort of version of a six sigma program in most of their departments. There are some companies that even require all personnel to be trained in six sigma implementations and policies. It uses statistical methods integrated with quality and lean processes to measure the possible and recognized improvement in the process. If implemented properly, entire teams and sub organizational structures (i.e. black belts, green belts, etc) are implemented to guide personnel in the proper conduct of the six sigma process and bringing the culture to the workplace successfully.

The idea behind six sigma is revealed in the name of the process… through identification of sources of variation and cost, teams are formed to find what the sources are, and then the variation is measured and plotted. It is then analyzed to see if there are other, uncontrollable aspects of the data that may be effecting the way that the parameter is measured.

 All of these are taken into consideration, and then the corrective action that is supposed to bring the process to within six sigma of the target value is implemented, or in other words, the process is improved. Over time, the process is conducted with the corrective action in place, and the parameter, once again, is measured.

This measurement is plotted, just as it was prior to the corrective action implementation, and the corrective action is analyzed for its effectiveness. The team then discusses what actions can be implemented to ensure the quality improvements are maintained and the progress is not lost by a lack of control over the corrective action.

The beauty of six sigma is that it can be used in any application, in any business, at any time. As stated before, there are plenty of documented case studies that show how six sigma can be effectively used inside of everything from sales and marketing to very complex manufacturing procedures. With the proper training and teams in place, the sky is the limit with regards to the amount of improvement an organization can realize by implementing the six sigma infrastructure.



                          Figure 1

As can be seen in Figure (1), there are five basic steps to completing a six sigma project. The first is “Define”, in which the parameter in that will be the focus of the project is identified. Additionally, the impact to the bottom line of the business is discussed and the potential savings is measured. It is at this point in which the company will decide whether or not to pursue further action in the improvement of the parameter, and whether the time and funding spent toward the improvement will pay off in the end.

Next, the parameter is measured in the “Measure” phase. Statistic relevance is taken into consideration as well as other sources of variation such as gage error. It is determined how well the actual parameter can be brought under control by measuring it with respect to the sigma value of a normally distributed curve.

Take, for example, a process that has 1000 opportunities for a defect. Of these opportunities, 2 defects emerge. This obviously means the process has .002 DPO, or defects per opportunity. From that, we can figure out what our DPMO, or defects per million opportunities. To do this, we simply multiply the DPO x 1 million. Our process has a level of 2,000 DPMO. This means that for every million pieces of this product we produce, 2,000 of them will be defective.

From the DPMO and our DPMO/σ table, we find that our σ value is 4.37. By looking at Figure (2), you can interpret this to mean that you will have a 99.73% chance of having between 1,987 (-3σ) and 2,014 (+3 σ) defects for every 1,000,000 parts produced.





                                           Figure (2)

Once this is completed, the team comes together and analyzes the data in the “Analyze” phase. If the previous two phases were correctly conducted, it will show where the greatest room for improvement exists, and the corrective actions are identified with the estimated improvement calculated.

Improvement is measured after the corrective action is implemented in the “Improve” phase. This phase is almost identical to the “Measure” phase, but more strong influence is placed on the corrective action‟s impact on the final parameter variations.

Finally, the last stage is “Control”, in which the corrective action is either modified or changed such that a long term realization of improvement is shown. Many times the corrective action is temporary in nature and must be modified to be able to sustain the improvement.

While anyone can be taught to brainstorm and start six sigma projects, it should be noted that without a focused and well trained team, there is a very large possibility for failure inside of the six sigma project. It is recommended that a dedicated team be placed in charge of every project and assist the champion in making the project run smoothly.

Six sigma has been proven to set companies apart from each other with its effectiveness. It is practiced in almost every major corporation and almost always results in a better, leaner, and more proficient company.
